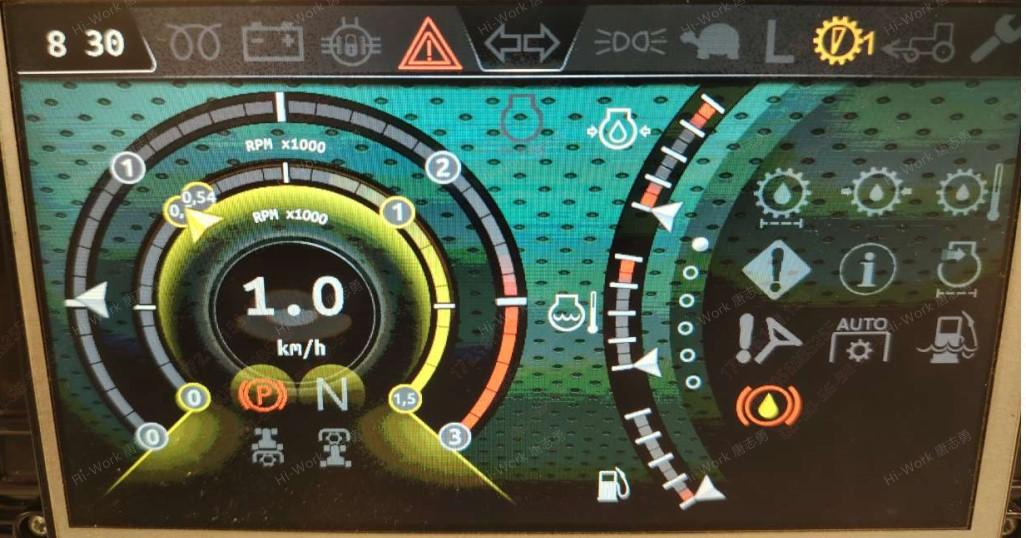

The initial general information screen is displayed 2 seconds after the display is switched on. The information is divided into various sections:
Status bar
The clock is on the left hand side. A series of indicators are used which provide information to the user. See the table below for a description.
Engine glow plug pre-heat activated
Battery status
Differential lock engage
RH turn signal indicator light ON
LH turn signal indicator light ON
Running lights ON
Creeper range selected
Slow range selected
Fast range selected
Fast mode (Hi) selected
Medium mode selected
Slow mode (Lo) selected
Clutch 1 bite level
Clutch 2 bite level
Clutch 3 bite level
Four wheel drive engaged
Maintenance required
Tractor Alarm
Parking brake engaged
Neutral shuttle
Forward gear shuttle
Reverse gear shuttle
Front PTO activated
Rear PTO activatec
540 PTO activated
540E PTO activated
1000 PTO activated
Engine speed set not used
Engine speed set Level 1 activated
Engine speed set Level 2 activated

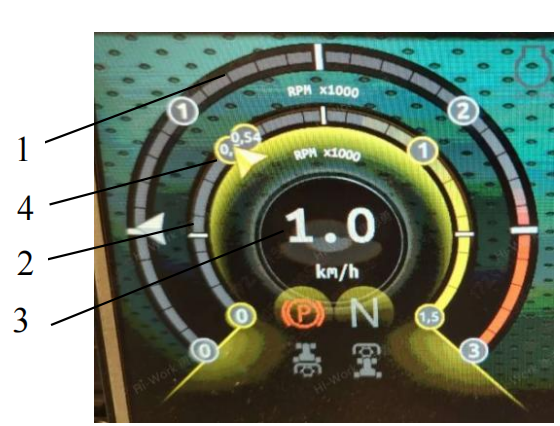

The rev counter dial consists of the following indicators:
1- Engine rev counter (rpm x1000)
2- PTO rev counter (rpm x1000)
3- Tachometer (km/h)
4- 540 PTO speed indicaton

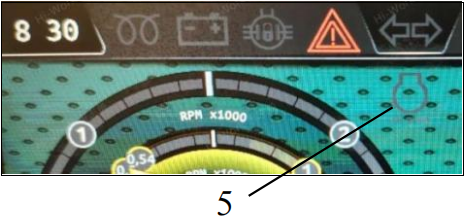

5- Engine speed set（if present）
The following icons are also on the dial:
